CIBES Accessibility Platform Lift

Easy to operate, safety with practicability

CIBES Accessibility Platform Lift

Easy to operate, safety with practicability

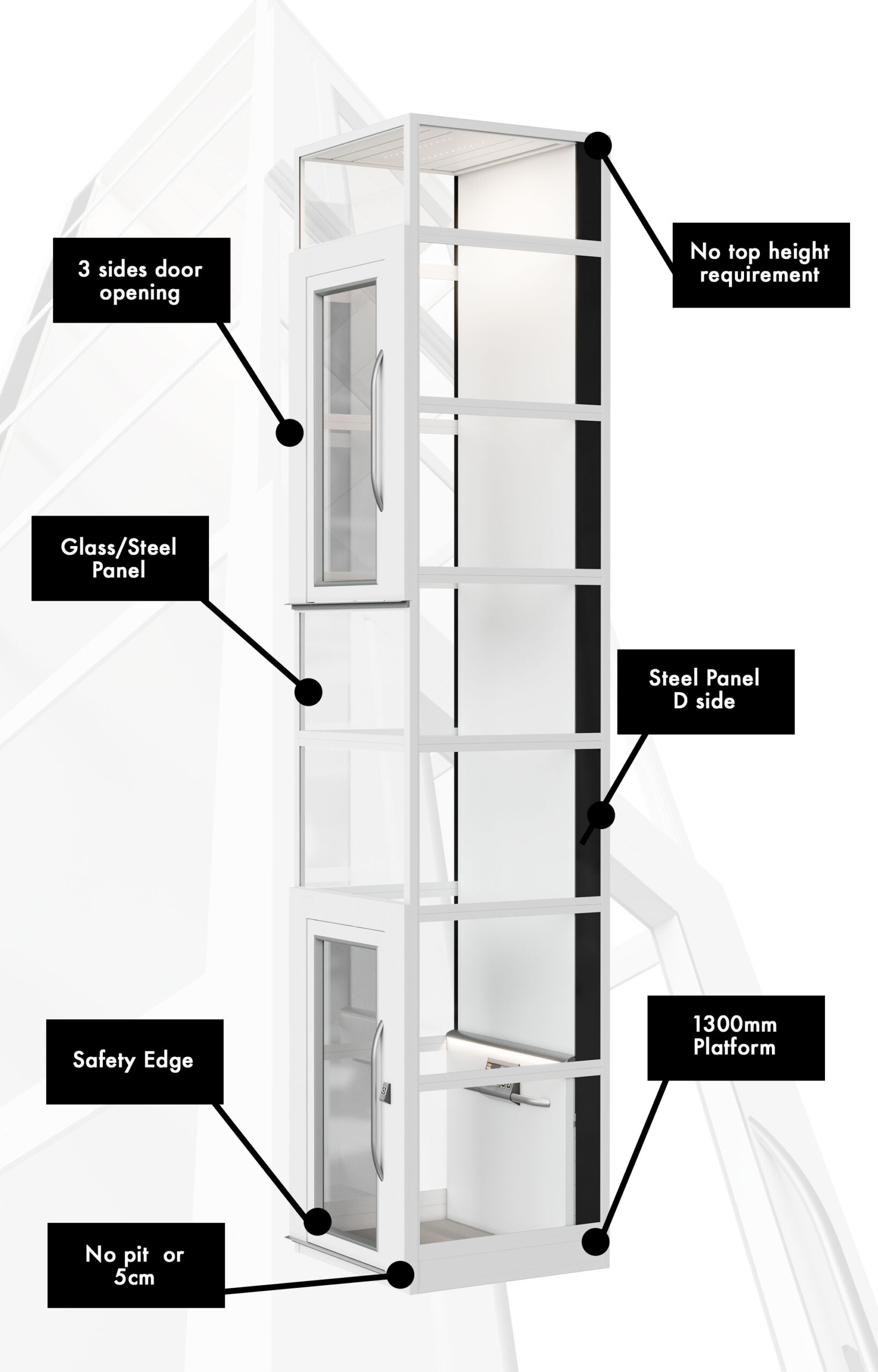

Cibes Uno

Footprint is less than One square meter, the Cibes One platform lift can carry up to 400kg and accommodate about two people. Mechanical call button on the door and mechanical control panel inside of the platform, which are clear operation, easy to use and suitable for the elderly. When you have a limited budget but must have an elevator, the Cibes One is ideal!

Fit Any Size

With flexible size options and 1300mm semi-high door options, the elevator can be easily integrated into a variety of environments.

Features:

5-7cm Bottom Pit
White Steel Shaft for Standard
Black steel Shaft for Option
Three Sides of Glass Shaft (Customization)
1300mm High Platform
White Ceiling
Aluminum Safety Bar with white light
Steel Door
Mechanical Call Button
Mechanical Control Operation Panel
Telephone Function
Forbo Iron Gray Flooring
1300mm Half Gate Door

Cibes Alto

The Cibes Two is an attractive high back of the Cibes one, which is different in that it has a 2.1-meter high back wall and safety bar still with lighting design.

Features

2100 High Back Design
5-7cm Bottom Pit
White Steel Shaft for Standard
Black steel Shaft for Option
Three Sides of Glass Shaft (Customization)

Mechanical LOP and COP

The LOP (landing of Panel) on the door and COP (Control of Panel inside the platform are mechanical operation buttons, convenient and simple. The button panel is also designed in Braille, which is suitable for people with special needs.

Features

White Ceiling
Aluminum Safety Bar with white light
Steel Door
Mechanical Call Button
Mechanical Control Operation Panel
Telephone Function
Forbo Iron Gray Flooring

	Platform dimensions		Finished Size		Cut-Out Size (swing door open on side B)			Cut-Out Size (swing door open on side A/C)
No.	A	B	A	B	A	B	Door Opening	A	B	Door Opening
1	635	850	1006	906	1076	946	654	1046	976	N/A
2	735	850	1106	906	1176	946	654	1146	976	604
3	835	850	1206	906	1276	946	654	1246	976
4	935	850	1306	906	1376	946	654	1346	976	754
5	1035	850	1406	906	1476	946	654	1446	976	854
6	1135	850	1506	906	1576	946	654	1546	976	954
7	635	950	1006	1006	1076	1046	754	1046	1076	N/A
8	735	950	1106	1006	1176	1046	754	1146	1076	604
9	835	950	1206	1006	1276	1046	754	1246	1076	654
10	935	950	1306	1006	1376	1046	754	1346	1076	754
11	1035	950	1406	1006	1476	1046	754	1446	1076	854
12	1135	950	1506	1006	1576	1046	754	1546	1076	954
13	635	1050	1006	1106	1076	1146	854	1046	1176	N/A
14	635	1050	1006	1106	1076	1146	854	1046	1176	N/A
15	835	1050	1206	1106	1276	1146	854	1246	1176	654
16	935	1050	1306	1106	1376	1146	854	1346	1176	754
17	1035	1050	1406	1106	1476	1146	854	1446	1176	854
18	1135	1050	1506	1106	1576	1146	854	1546	1176	954
19	635	1150	1006	1206	1076	1246	854	1046	1276	N/A
20	735	1150	1106	1206	1176	1246	854	1146	1276	604
21	835	1150	1206	1206	1276	1246	854	1246	1276	654
22	935	1150	1306	1206	1376	1246	854	1346	1276	754
23	1035	1150	1406	1206	1476	1246	854	1446	1276	854
24	1135	1150	1506	1206	1576	1246	854	1546	1276	954
25	635	1250	1006	1306	1076	1346	854	1046	1376	N/A
26	735	1250	1106	1306	1176	1346	854	1146	1376	604
27	835	1250	1206	1306	1276	1346	854	1246	1376	654
28	935	1250	1306	1306	1376	1346	854	1346	1376	754
29	1035	1250	1406	1306	1476	1346	854	1446	1376	854
30	1135	1250	1506	1306	1576	1346	854	1546	1376	954
31	635	1350	1006	1406	1076	1446	954	1046	1476	N/A
32	735	1350	1106	1406	1176	1446	954	1146	1476	604
33	835	1350	1206	1406	1276	1446	954	1246	1476	654
34	935	1350	1306	1406	1376	1446	954	1346	1476	754
35	1035	1350	1406	1406	1476	1446	954	1446	1476	854
36	1135	1350	1506	1406	1576	1446	954	1546	1476	954
37	635	1450	1006	1506	1076	1546	1054	1046	1576	N/A
38	735	1450	1106	1506	1176	1546	1054	1146	1576	604
39	835	1450	1206	1506	1276	1546	1054	1246	1576	654
40	935	1450	1306	1506	1376	1546	1054	1346	1576	754
41	1035	1450	1406	1506	1476	1546	1054	1446	1576	854
